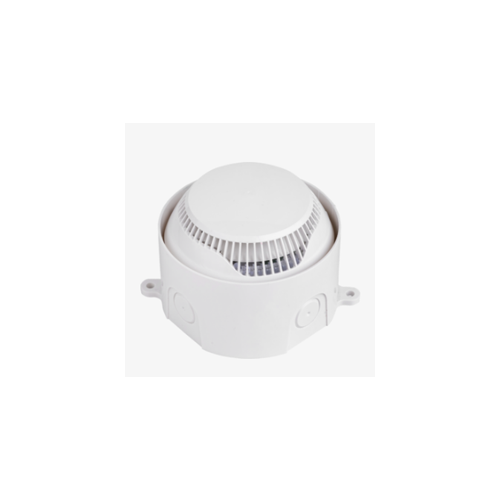

Wet Base is waterproof deep base accessory for mounting into difficult and harsh environments, and areas with high humidity.
Wet Base is waterproof deep base accessory for mounting into difficult and harsh environments, and areas with high humidity.
Operating Voltage Range | 15 – 32VDC (Nom. 27VDC) |
Consumption in quiescent state | < 160μA@27VDC |
Consumption in alarm state, with communication | 6.5mA |
Output in alarm state at terminal RI (terminals 4/ 1) | 7.5 mA (max)/ 7.5V |
Wire Gauge for terminals | 0.4mm² – 2.0mm² |
Operating temperature | -10°C to +60°C |
Protection | IP30 |
Weight (including base) | ~125g |
Dimensions (including base) | 103x42mm |
