| Model No. | Rated Capacity (GPM) | Size(SucXDis) (inches) | UL Listed Rated Net Pressure Range (PSI) | FM Approved Rated Net Pressure Range (PSI) | SETSCO & CE Pressure(PSI) | Approx Speed (RPM) | Max Working Pressure (PSI) |
|---|---|---|---|---|---|---|---|
| SFP-50-20 EM-2G | 50 | 2 ½ X 2 | 74 – 93 | 74 – 93 | 74 – 93 | 2900 | 180 |
| SFP-50-20 EM-2G | 50 | 2 ½ X 2 | 79 – 99 | 79 – 99 | 79 – 99 | 3000 | 180 |
| SFP 50-20 EM | 50 | 2 x 1 ¼ | 68 – 87 | 68 – 88 | 68 – 87 | 2900 | 230 |
| SFP 50-20 EH | 50 | 2 x 1 ¼ | 101 -129 | 102 – 129 | 101 -129 | 3500 | 230 |
| SFP 50-26 EM | 50 | 2 x 1 ¼ | 115 -140 | 115 – 133 | 115 -140 |

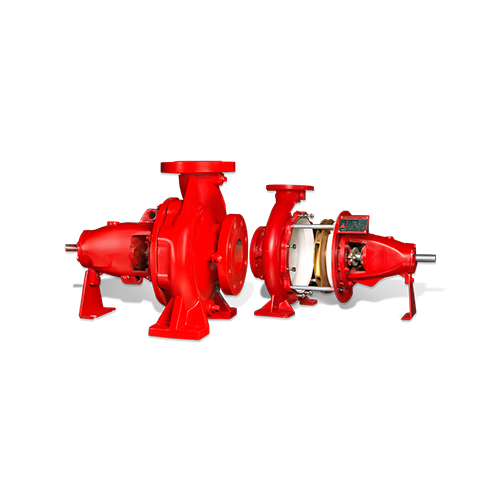

Our End Suction Fire Pumps are UL Listed & FM Approved and are in compliance to NFPA 20 Design Requirements. The fire Pumps come in a wide range of Flows and pressures. All SFFECO End Suction pumps pass through rigorous Hydrostatic & Performance test, as required by global standards. These Fire pumps are available in Electric Motor & Diesel Engine Driven configurations.
| Flow (GPM) | Skid Width (mm) | Skid Height (mm) | Skid Length (mm) | Diesel Engine (HP) | Motor (HP) | Jockey (HP/GPM) | Header Pipe |
|---|---|---|---|---|---|---|---|
| 50 | 650 | 1250 | 1230 | 8 | 5.5 | 3 / 10 | 2" |
| 120 / 150 | 1220 | 1300 | 1220 | 15 | 15 | 3 / 10 | 2.5" |
| 250 / 300 | 1220 | 1420 | 1220 | 25 | 30 | 3 / 15 | 4" |
| 350 | 1550 | 1630 | 1600 | 40 | 40 | 3 / 20 | 4" |
| 500 | 1600 | 1420 | 1800 | 60 | 50 | 5.5 / 25 | 6" |
| 750 | 1700 | 1300 | 1800 | 85 | 75 | 5.5 / 35 | 6" |
| 1000 | 1700 | 1250 | 2000 | 100 | 100 |
| Model | PD1 | PD2 | PD6 | PD10 | PD12 | PDB5 | PDB10 |
|---|---|---|---|---|---|---|---|
| Capacity | 1 Kg | 2 Kg | 6 Kg | 10 Kg | 12 Kg | 5 Lbs | 10 Lbs |
| Effective Range | 4 m | 4 m | 6.5 m | 8.5 m | 8.5 m | 4 m | 5.5 m |
| Discharge Duration | 6-10 Sec | 6-10 Sec | 10-14 Sec | 14-22 Sec | 14-22 Sec | 6-10 Sec | 8-11 Sec |
| Working Pressure | 12-15 bar | 12-15 bar | 12-15 bar | 12-15 bar | 12-15 bar | 12-15 bar | 12-15 |
| Model No. | Rated Capacity (GPM) | Size (SucXDis) | UL Listed Rated Net Pressure Range (PSI) | FM Approved Rated Net Pressure Range (PSI) | SETSCO & CE Rated Net Pressure Range (PSI) | Approx Speed (RPM) | Max Working Pressure (PSI) |
|---|---|---|---|---|---|---|---|
| SFP150-25SH | 150 | 6 x 4 | 114-208 | 114-208 | 114-208 | 3500 | 300 |
| SFP150-25SH | 150 | 6 x 4 | 121-220 | 121-220 | 121-220 | 3600 | 300 |
| SFP150-40SM | 150 | 6 x 4 | 206-289 | 206-289 | 206-289 | 2900 | 385 |
| SFP150-40SM | 150 | 6 x 4 | 221-310 | 221-310 | 221-310 | 3000 | 385 |
| SFP150-SN31SH | 150 | 6 x 4 | 226-316 | 226-316 | 226-316 |
